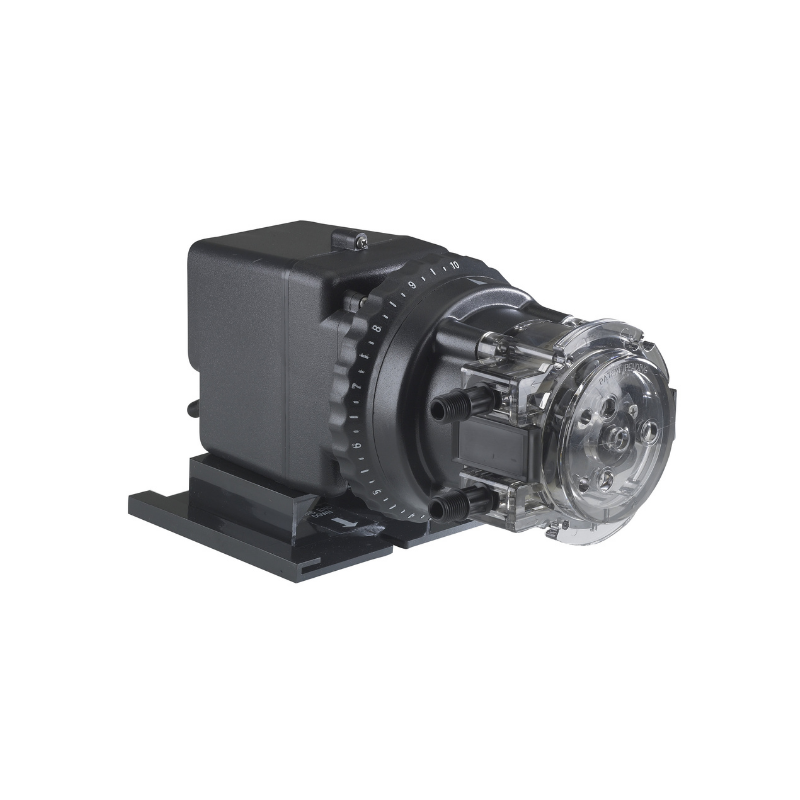

Stenner 45MJH2B2STAA 45MHP10 Adjustable Chemical Injection Pump - 10 GPD, 100 PSI, 220V

The Stenner 45MJH2B2STAA 45MHP10 Classic Series Single Head Adjustable Pump is designed for reliable, adjustable chemical metering applications. This configuration delivers output up to 10 gallons per day at a maximum operating pressure of 100 PSI and is configured for 220V, 60Hz power.

The Classic Series adjustable design features a 20:1 turndown ratio with an external feed-rate control that allows output adjustment from 5% to 100% in 2.5% increments. This pump uses a #2 Santoprene pump tube configuration and is well suited for applications requiring controlled chemical injection at higher operating pressure. Stenner recommends confirming chemical compatibility and application pressure before selecting a pump configuration.

Features

• Stenner Classic Series single-head adjustable pump
• Part number: 45MJH2B2STAA
• Model: 45MHP10
• Maximum output: 10 GPD
• Maximum operating pressure: 100 PSI
• 220V, 60Hz configuration
• #2 Santoprene pump tube configuration
• Adjustable output from 5% to 100%
• 20:1 turndown ratio
• Feed-rate adjustment in 2.5% increments
• Self-priming electromechanical design
• QuickPro pump-head design for easier servicing
• Designed for adjustable chemical metering applications
