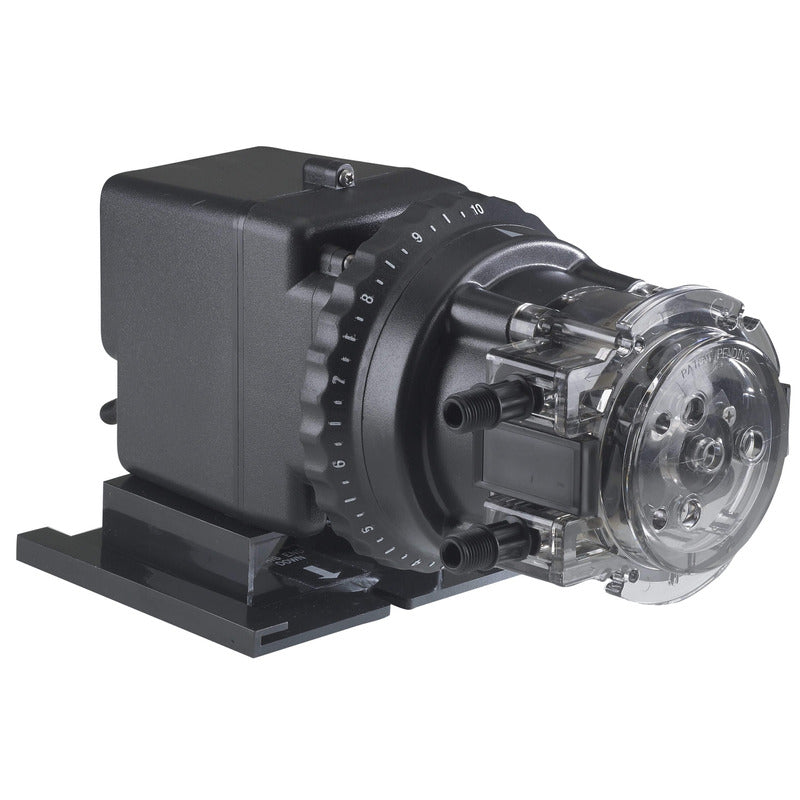

Stenner 45MJH2A2STAA 45MHP10 Adjustable Chemical Injection Pump - 10 GPD, 100 PSI, 120V

The Stenner 45MJH2A2STAA 45MHP10 Classic Series Single Head Adjustable Pump is a self-priming peristaltic chemical metering pump designed for adjustable chemical feed applications. This configuration provides output up to 10 gallons per day at a maximum operating pressure of 100 PSI and operates on 120V, 60Hz power.

The Classic Series adjustable design features a 20:1 turndown ratio with an external feed-rate control. Output can be manually adjusted from 5% to 100% in 2.5% increments. The 45MJH2A2STAA uses a #2 Santoprene pump tube configuration with 1/4" black suction and discharge tubing.

Features

• Genuine Stenner Classic Series single-head adjustable pump
• Part number: 45MJH2A2STAA
• Model: 45MHP10
• Maximum output: 10 GPD
• Maximum operating pressure: 100 PSI
• 120V, 60Hz operation
• #2 Santoprene pump tube
• 1/4" black suction and discharge tubing
• Adjustable output from 5% to 100%
• 20:1 turndown ratio
• Feed-rate adjustment in 2.5% increments
• Self-priming electromechanical design
• Installation accessories included
• Confirm chemical compatibility and application pressure before use
